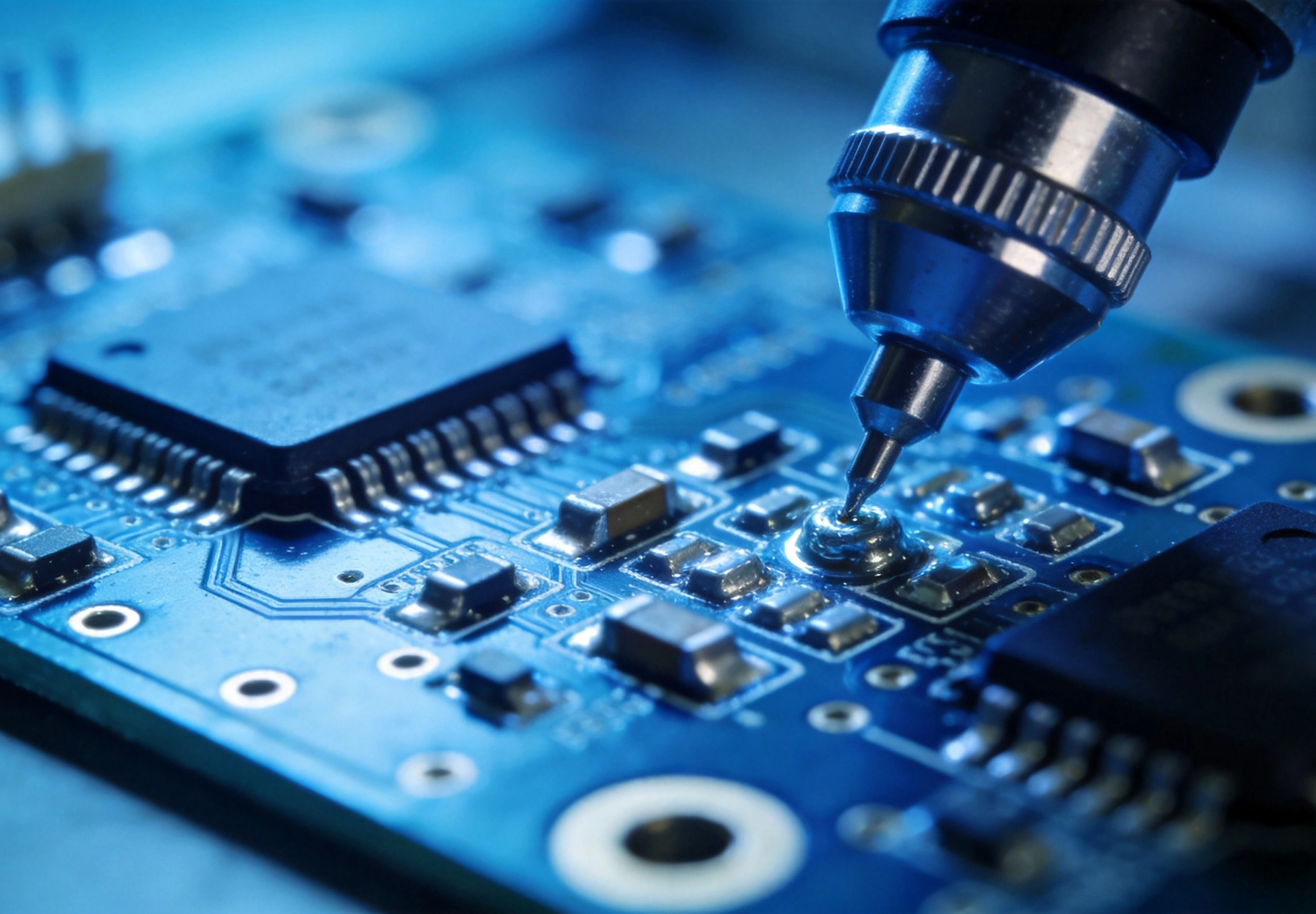

Inspection Standards: IPC-A-610 and What it Means for Your Assembled Boards

When you commission Pcb Assembly services, you expect boards that work correctly and last for their intended service life. But how do you define "correctly"? The IPC-A-610 standard provides the answer that manufacturers and customers rely on worldwide. This industry consensus document establishes visual acceptance criteria for electronic assemblies, giving both suppliers and buyers a common language for defining quality expectations. Understanding what IPC-A-610 requires helps you specify appropriate quality levels, communicate effectively with contract manufacturers, and ensure your products meet market expectations for reliability and performance.

What is IPC-A-610 and Why Does It Matter

The Institute for Printed Circuits (IPC) developed the A-610 standard as a comprehensive visual inspection reference for electronic assemblies. First published in the 1970s and updated regularly to reflect evolving technology, the standard has become the most widely referenced quality specification in the Electronics Manufacturing industry. When a customer requests IPC-compliant assemblies, they expect manufacturers to apply these inspection criteria systematically rather than using ad-hoc or inconsistent quality standards.

IPC-A-610 covers the complete assembly process, from component placement and solder joints to cleaning and conformal coating. However, its primary focus remains visual inspection of solder connections, which represent the most common source of field failures in electronic assemblies. The standard provides detailed photographs and illustrations showing acceptable and rejectable conditions for each solder joint type, giving inspectors clear references for making pass/fail decisions.

The standard matters commercially because it establishes legal defensibility. When quality disputes arise, IPC-A-610 compliance provides documented evidence that assemblies met recognized industry criteria at the time of manufacture. This documentation protects both manufacturers and customers by establishing objective quality boundaries rather than relying on subjective assessments that can vary between inspectors or change over time.

The Three Classes: Defining Quality Expectations

Class 1: General Electronic Products

Class 1 applies to electronic products where the primary requirement is function of the completed assembly. Consumer electronics like smartphones, tablets, and household appliances fall into this category. The focus is on making the product work, with some cosmetic imperfections acceptable as long as they do not affect reliable operation. For Class 1 assemblies, inspectors allow wider tolerances on component alignment, minor solder irregularities that do not compromise electrical connectivity, and cosmetic marks or residues that do not create reliability risks.

The relaxed criteria of Class 1 enable efficient manufacturing processes that prioritize throughput and cost-effectiveness. High-volume consumer products benefit from these standards because the economic value of each board does not justify the inspection intensity required for stricter classifications. Field failure in Class 1 products typically results in customer inconvenience rather than safety concerns or mission failure, making the higher defect rates tolerable from a risk management perspective.

Class 2: Dedicated Service Electronic Products

Class 2 serves electronic products where continued performance and extended life are required, but service is not necessarily routine. Industrial equipment, telecommunications infrastructure, and medical devices that are not life-sustaining typically fall into this classification. Class 2 assemblies must demonstrate higher reliability than Class 1, with tighter tolerances on component placement, improved solder joint cosmetics, and stricter requirements for documentation of any repair operations.

The practical difference between Class 1 and Class 2 manifests in inspection intensity and acceptance criteria. A solder joint that passes Class 1 inspection might fail Class 2 evaluation if it shows irregularities that, while not immediately functional, could compromise long-term reliability. Class 2 inspectors pay closer attention to potential failure mechanisms like insufficient solder fillet height, marginal wetting, or presence of contaminates that could degrade performance over time.

Class 3: High Performance Electronic Products

Class 3 addresses electronic products where continued performance or performance-on-demand is critical, and equipment downtime cannot be tolerated. Military systems, aerospace electronics, life-sustaining medical devices, and space hardware require Class 3 assembly quality. These applications cannot accept the failure risk that relaxed Class 1 or Class 2 criteria permit, driving requirements for the most stringent inspection standards and complete Manufacturing Documentation.

Class 3 inspection demands exceptional process capability from manufacturers. Every aspect of assembly must demonstrate statistical control, with capability indices exceeding 1.33 for critical processes. Documentation requirements include complete traceability from component lot codes through assembly operations to test results. The cost premium for Class 3 assemblies reflects this intensity—manufacturers must maintain separate production lines, specialized training, and rigorous quality systems to serve this market segment.

Key Inspection Requirements in IPC-A-610

Solder Joint Acceptance Criteria

The heart of IPC-A-610 inspection focuses on solder joint quality. The standard defines minimum requirements for wetting, fillet shape, and fillet upset for each component type. For J-lead components like IC packages, inspectors examine the solder wetting on the lead and pad surfaces, the fillet shape around the connection, and the heel fillet that provides mechanical strength. Gull-wing leads require specific heel and toe wetting requirements that ensure both electrical connectivity and mechanical reliability.

Surface mount components receive particular attention because their small size and high density create inspection challenges. Inspectors examine for proper placement alignment, with tolerances specified as percentages of component body dimensions. Voids in solder joints, while sometimes acceptable, cannot exceed specified percentages of the joint area. Gold embrittlement from excessive gold dissolution into solder represents a rejectable condition regardless of joint cosmetics because it creates mechanical brittleness that leads to field failure.

Through-Hole Solder Joints

Despite the industry shift toward Surface Mount Technology, through-hole connections remain essential for many applications requiring mechanical strength or thermal cycling durability. IPC-A-610 specifies inspection criteria for through-hole solder joints including hole fill, wetting of barrel walls and component leads, and the fillet on both sides of the board. Complete hole fill is generally required, though some applications accept partial fillets when documented and agreed upon between customer and manufacturer.

Criteria for through-hole joints address common defects like insufficient solder, disturbed joints from movement during solidification, and barrel cracks from thermal or mechanical stress. The standard provides acceptance criteria calibrated to the application class, allowing marginal conditions in Class 1 while requiring pristine joints for Class 3 applications.

Component Damage and Lead Integrity

Beyond solder joints, IPC-A-610 addresses component condition and lead integrity. Bent leads that do not make proper contact represent rejectable conditions regardless of class. However, the standard distinguishes between pre-existing damage and damage occurring during assembly, holding manufacturers responsible for handling damage but not for components that arrive with defects from the supplier. Documentation requirements help establish this distinction when disputes arise.

Component cracking, particularly in ceramic capacitors and larger IC packages, receives careful attention because these failures often manifest as intermittent operation or delayed field failure. Inspectors examine for visible cracks, though many crack mechanisms occur beneath component bodies where visual inspection cannot detect them. Process controls like proper handling procedures and appropriate thermal profiles prevent component damage more effectively than end-of-line inspection alone.

markings and Documentation Requirements

IPC-A-610 specifies requirements for Component Identification, board markings, and assembly documentation that support traceability and serviceability. Correct component placement requires verification that the correct part went in the correct location, orientation, and polarity. Assembly markings including company identification, date codes, and revision levels must remain legible after processing, enabling field service personnel to identify assemblies and their manufacturing history.

Inspection Methods and Process Integration

Manual Visual Inspection

Human inspectors remain essential to quality assurance despite advances in automated inspection technology. Skilled inspectors bring judgment and flexibility that automated systems cannot replicate, evaluating complex conditions and context-dependent acceptability. However, manual inspection imposes limitations on throughput, consistency, and detection of subtle defects. The standard acknowledges these limitations by specifying minimum magnification levels and lighting conditions that ensure consistent visual evaluation.

Training and certification requirements support inspection consistency. IPC standards include certification programs that verify inspectors understand criteria and apply them uniformly. Manufacturers serving Class 2 and Class 3 markets typically require inspector certification as a quality system requirement, ensuring their inspection workforce demonstrates competency in applying acceptance criteria correctly.

Automated Optical Inspection (AOI)

AOI systems have become standard equipment in high-volume SMT production lines, performing rapid inspection that catches defects before they reach functional test. These systems use cameras and image processing software to compare assembled boards against known-good reference images, flagging deviations for human review. AOI provides consistent inspection that does not fatigue or lose focus, maintaining detection capability throughout production runs.

Effective AOI implementation requires programming effort to teach the system acceptable tolerance ranges and defect definitions. False positive rates that generate excessive rejects burden the inspection process with unnecessary review work, while false negatives that miss real defects create reliability risk. Optimizing AOI programs requires balancing sensitivity against specificity, typically through correlation with manual inspection results and field failure data.

X-Ray and Advanced Inspection Technologies

Hidden solder joints beneath area array packages like BGA and QFN components require inspection methods beyond optical capabilities. X-ray inspection penetrates component bodies to reveal solder joints that cannot be inspected visually. These systems range from simple 2D radiography to sophisticated 3D computed tomography that reconstructs joint geometry for detailed analysis.

IPC-A-610 addresses X-ray inspection requirements for hidden joints, specifying acceptable and rejectable conditions visible in radiographic images. The standard acknowledges that X-ray inspection has different capability limitations than optical inspection, requiring specialized training and interpretation skills. For Class 3 applications, X-ray inspection often becomes mandatory rather than optional, ensuring hidden joint quality meets the same standards applied to visible connections.

Working with Your Contract Manufacturer

Specifying IPC Class Requirements

Clear communication of your IPC class requirements eliminates ambiguity that can lead to quality disputes. When requesting quotes from contract manufacturers, specify the IPC class that matches your application requirements. Many manufacturers assume Class 2 as a default unless otherwise specified, which may over-specify consumer products unnecessarily or under-specify industrial applications inadvertently.

Documentation should include reference to the current revision of IPC-A-610, as standards evolve with technology updates. The current revision as of 2024 is Revision J, though earlier revisions remain in active use where product qualification predates updates. Specifying revision requirements ensures consistent interpretation of acceptance criteria that may have changed between versions.

Understanding Inspection Reports and Defect Data

Quality-focused contract manufacturers provide defect data that helps you understand assembly quality levels. First-pass yield metrics indicate how many boards pass inspection on the first attempt, with higher yields reflecting better process capability. Defect Pareto analysis identifies the most common defect types, guiding process improvement efforts that reduce systemic quality problems.

Acceptance quality level (AQL) sampling plans provide statistical frameworks for making disposition decisions on production lots. IPC standards incorporate AQL references that define acceptable defect rates for each inspection class. Understanding AQL concepts helps you interpret manufacturer quality reports and make informed decisions about lot acceptance versus inspection escalation.

Frequently Asked Questions

What IPC-A-610 class should I specify for my product?

Match your IPC class to your application's reliability requirements and failure consequences. Consumer products with short service life expectations and low failure impact typically fit Class 1. Industrial equipment and telecommunications hardware requiring extended service life justify Class 2. Products where failure creates safety risks or mission-critical impacts require Class 3. When uncertain, discuss your application with your contract manufacturer—they can recommend appropriate classification based on their experience with similar products.

Can I mix IPC classes within a single assembly?

While technically possible, mixing classes on one assembly creates complexity and inspection confusion. The standard does not prohibit mixing, but most manufacturers recommend selecting one class for the entire assembly based on the most critical requirement. Mixing classes within the same assembly should occur only after careful analysis of cost and benefit tradeoffs.

Does IPC certification mean the manufacturer follows all IPC standards?

IPC certification typically refers to specific credentials like IPC-A-610 Specialist certification for individual inspectors or IPC-7711/7721 certification for repair technicians. These credentials verify individual competency rather than company-wide compliance. Ask manufacturers about their quality system certifications (ISO 9001, AS9100, IATF 16949) and quality metrics to understand their overall quality commitment.

What happens when IPC criteria conflict with customer specifications?

When customer specifications differ from IPC-A-610 requirements, the more stringent requirement typically applies. However, this depends on how specifications are written. If customer specifications state "per IPC-A-610 Class 3," the standard applies in full. If customer specifications add requirements that conflict with or contradict the standard, those specifications take precedence as a matter of contract law. Always clarify such situations in writing before production.

How often does IPC-A-610 get updated?

IPC reviews and updates standards on approximately three to five year cycles, though significant technological changes can accelerate revisions. Major updates incorporate new component technologies, mounting styles, and inspection methods that emerge between revisions. When standards update, manufacturers and customers should agree on which revision governs their products, considering qualification costs and the relevance of new requirements.

Conclusion

IPC-A-610 provides the foundational quality language for electronic assembly that enables effective communication between manufacturers and customers. Understanding the three class levels and their appropriate applications helps you specify quality requirements that match your market and reliability expectations. Whether you produce consumer gadgets requiring basic functionality or mission-critical systems demanding exceptional reliability, IPC-A-610 offers a framework for defining and verifying assembly quality.

Working with manufacturers who understand and apply IPC-A-610 criteria systematically ensures your assembled boards meet recognized industry standards. The investment in proper quality classification and documentation pays returns through reduced field failures, improved customer satisfaction, and defensible quality records when questions arise. Start by determining the appropriate class for your products, then communicate those requirements clearly to establish quality expectations that protect both your business and your customers.
